Electric Boiler

Create Controlled Function

pandaprosumer.create_controlled_electric_boiler(prosumer, max_p_kw, efficiency_percent=100, name=None, index=None, in_service=True, level=0, order=0, period=0, **kwargs)[source]

Creates an electric boiler element in prosumer[“electric_boiler”] and an electric boiler controller

INPUT:

prosumer - The prosumer within this electric boiler should be created

max_p_kw (float) - Maximal electrical power of the boiler [kW]

OPTIONAL:

efficiency_percent (float, default 100) - Boiler Efficiency [%]

name (string, default None) - The name for this electric boiler

index (int, default None) - Force a specified ID if it is available. If None, the index one higher than the highest already existing index is selected.

in_service (boolean, default True) - True for in_service or False for out of service

level (int, default 0) - The level of the controller

order (int, default 0) - The order of the controller

period (int, default 0) - Index of the period, default is 0

OUTPUT:

index (int) - The unique ID of the created electric boiler

EXAMPLE:

create_controlled_electric_boiler(prosumer, “electric_boiler_1”)

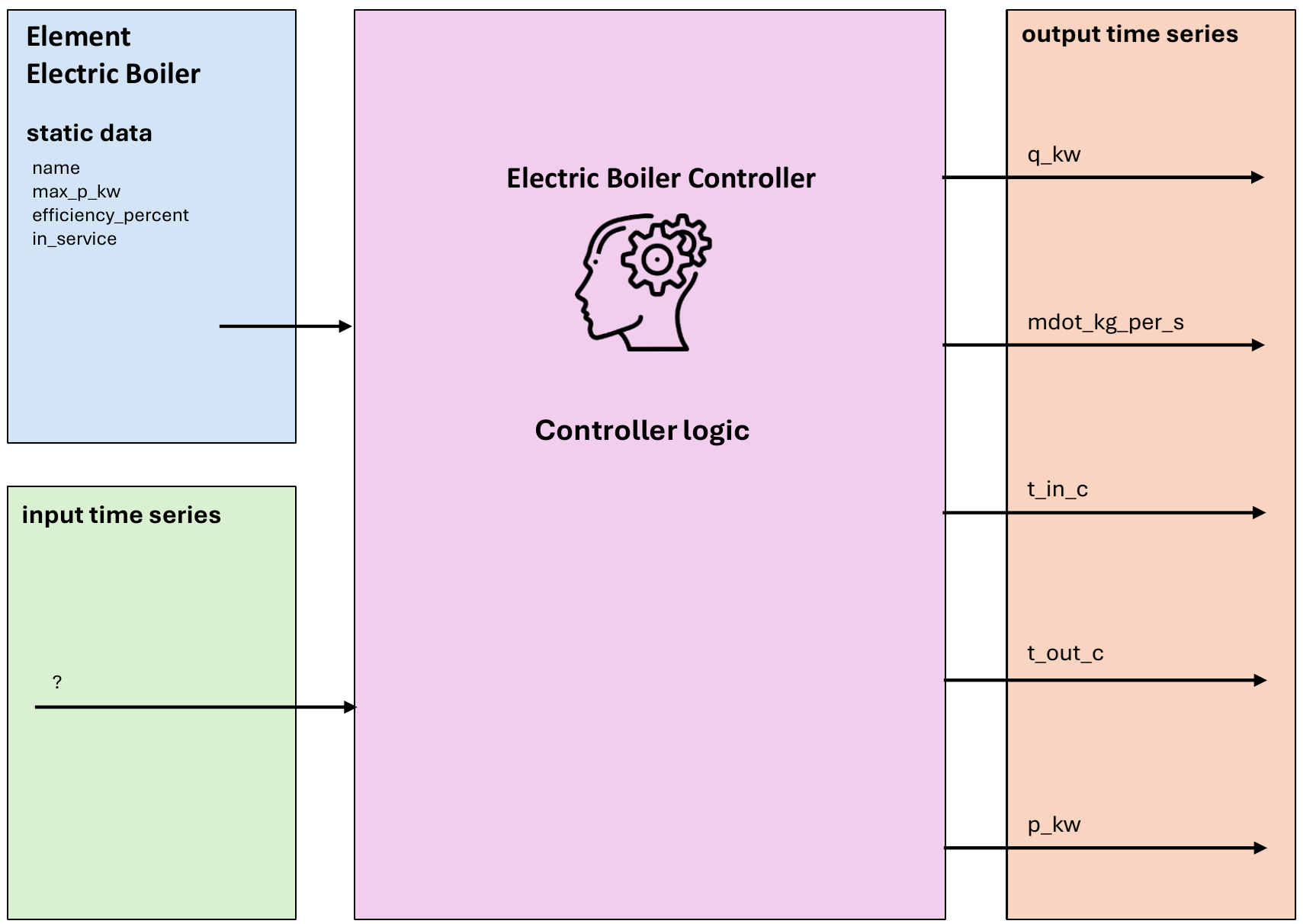

Controller

Input Static Data

These are the physical parameters required for the Electric Boiler element to enable the model calculation:

Input Static Data: Electric Boiler Element
Parameter	Description	Unit
name	Unique name or identifier for the electric boiler element.	N/A
max_p_kw	Maximum electrical power of the boiler.	kW
efficiency_percent	Boiler efficiency expressed as a percentage.	%

Input Time Series

No input (GenericMapping) needed for this controller

Output Time Series

Output Time Series: Electric Boiler
header: “Parameter”	Description	Unit
q_kw	The provided heat power.	kW
mdot_kg_per_s	The water mass flow rate through the boiler.	kg/s
t_in_c	The temperature at the inlet of the electric boiler (cold return pipe).	Degree Celsius
t_out_c	The temperature at the outlet of the electric boiler (hot feed pipe).	Degree Celsius
p_kW	The boiler consumed electrical power.	kW

Mapping

The Electric Boiler Controller can be mapped using FluidMixMapping.

No inputs are mapped, as the electric boiler does not act as a responder.
The following outputs are mapped:
- mdot_kg_per_s
- t_out_c

Model

class pandaprosumer.controller.models.ElectricBoilerController(prosumer, electric_boiler_object, order, level, in_service=True, index=None, name=None, **kwargs)[source]

Controller for electric boilers.

Parameters:

prosumer – The prosumer object
electric_boiler_object – The electric boiler object
order – The order of the controller
level – The level of the controller
in_service – The in-service status of the controller
index – The index of the controller
kwargs – Additional keyword arguments

control_step(prosumer)[source]

Executes the control step for the controller.

Parameters:: prosumer – The prosumer object

The electric boiler model calculate the power consumption of the boiler to heat up the fluid to the demand power. It is a tankless electric water heater that heats water on demand.

\begin{align*} P_\text{el} = \frac{Q}{\eta} &= \frac{\dot{m} * Cp * (T_\text{feed} - T_\text{return})}{\eta} \\ \end{align*}

If the power consumption is higher than the maximum power of the boiler P_{text{el}_text{max}}, the power consumption is set to the maximum power, and the actual output temperature \(T_\text{feed}\) that can be reached is calculated based on the maximum power.
